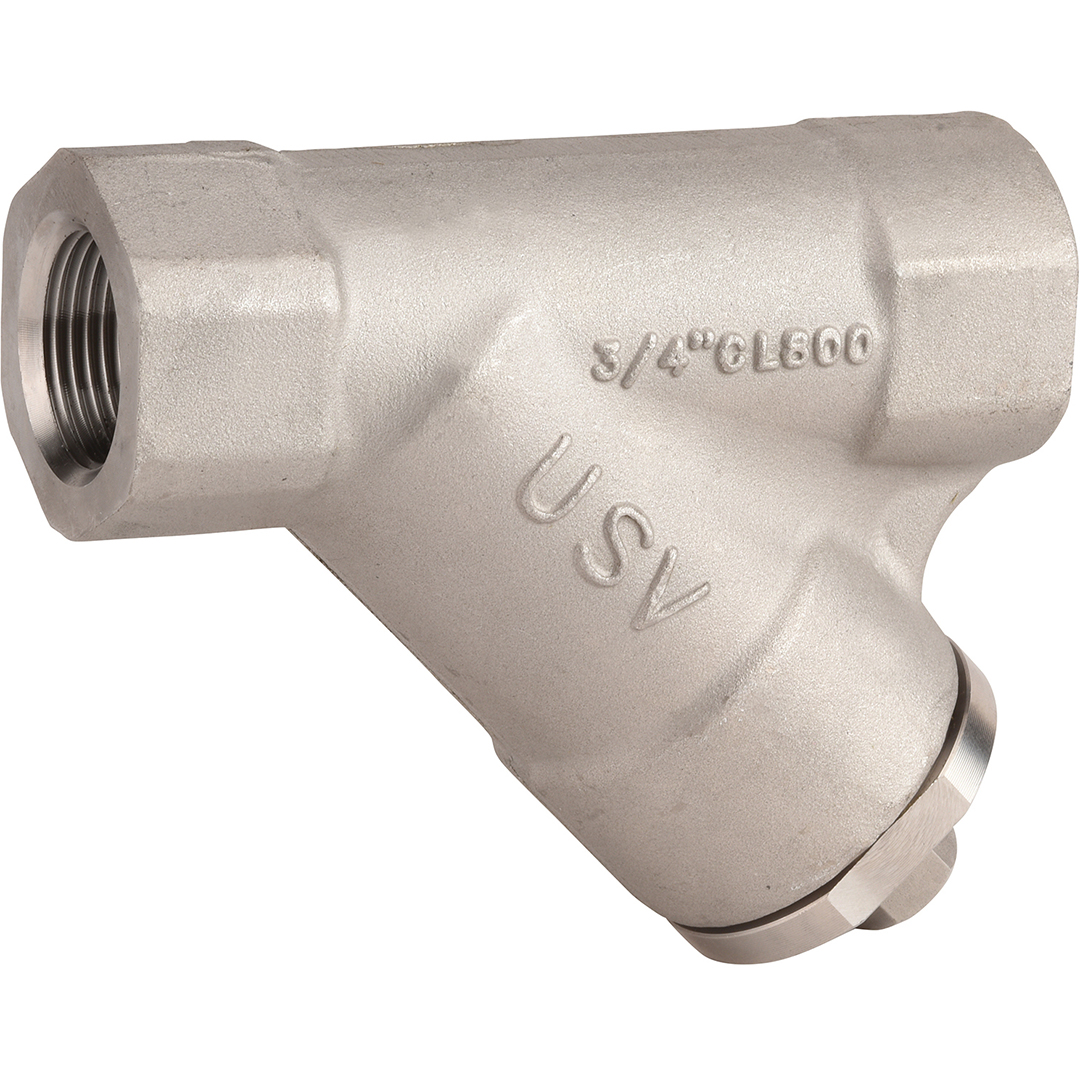

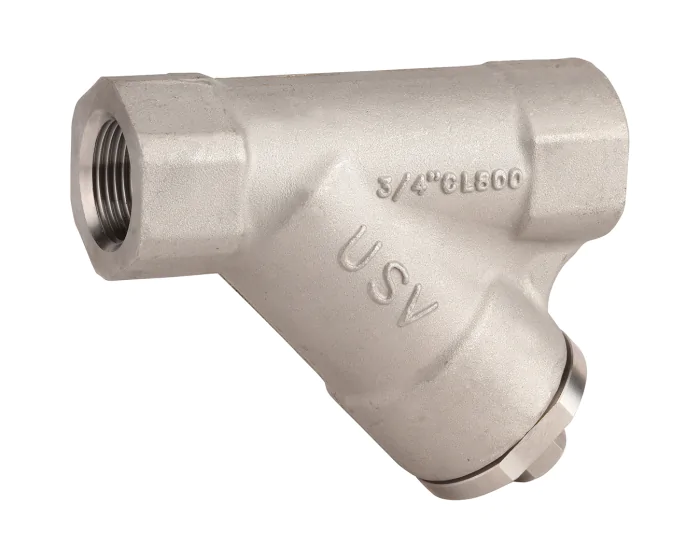

The F316 forged stainless steel Y strainer Class 800 NPT series 239, with removable stainless steel screen and removable drain plug, for the oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| Construction standard | ASME B16.34 |
| Bonnet | Bolted |
| Draining valve | No |
| Steam | Yes |
| Application | Industry |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 90.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Stainless steel F316/F316L |
| Bore | Standard |
| PS (bar) | 132 |
| Connections | NPT FF |
| TS max (°C) | 538 |
| TS min (°C) | -49 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Stainless steel F316/F316L Standard 1/4'' | 239002 | S1007418 |
€128.51
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 3/8'' | 239003 | S1007419 |
€128.51
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 1/2'' | 239004 | S1007420 |
€128.51
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 3/4'' | 239005 | S1007421 |
€177.40
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 1'' | 239006 | S1007422 |
€266.70
(excl. btw)
|
add to cart |
